Article no.:

KX 1561000

Product description

System perfection. The new small enclosure KX, stainless steel offers maximum data quality and consistency in engineering, flexibility, and safety for a variety of applications.

Material

Housing: Stainless steel 1.4301 (AISI 304)

Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal

Surface finish

Housing and cover: Brushed, grain 180

Supply includes

Housing with cover

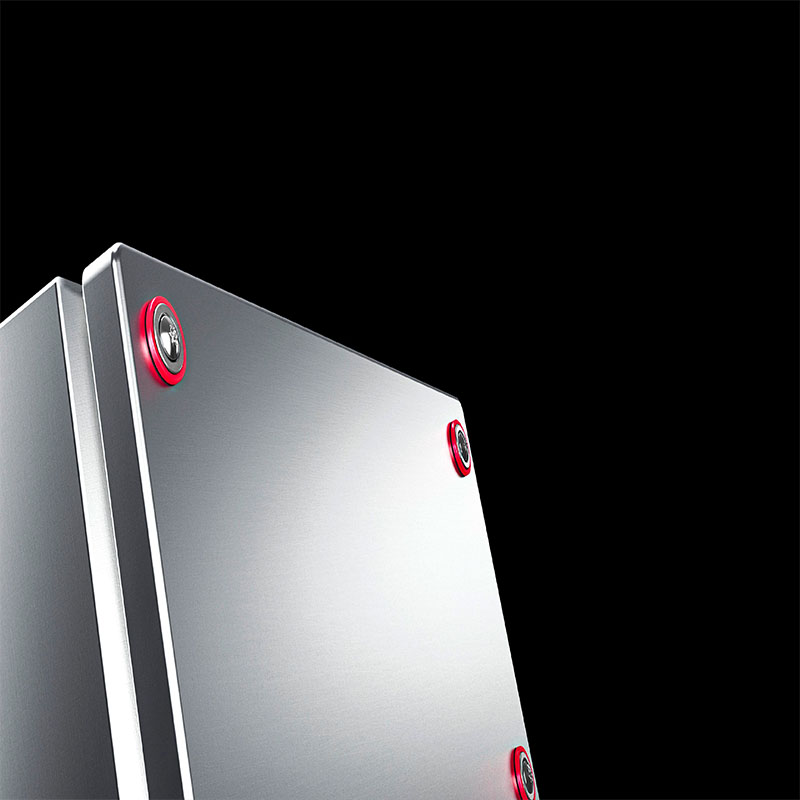

Quick-release fasteners including plastic bushings

Protection category NEMA

NEMA 1

NEMA 3R

NEMA 3RX

NEMA 4

NEMA 4X

NEMA 12

Protection category IP to EN 60 529

IP 66

Type rating according to UL 50E

Type 1

Type 3R

Type 3RX

Type 4

Type 4X

Type 12

Dimensions

Width: 300 mm

Height: 150 mm

Depth: 80 mm

( Width: 11.8 ˝

Height: 5.91 ˝

Depth: 3.15 ˝ )

Material thickness - cover

1.25 mm

( 0.05 ˝ )

Material thickness - enclosure

1.25 mm

( 0.05 ˝ )

Lock

No. of locks: 4

Base material

Stainless steel 1.4301 (AISI 304)

Packaging unit

1 pc(s).

Net weight

1.868 kg

Gross weight

1.971 kg

PCF/VE (cradle-to-gate)

7.86

Customs tariff number

84879059

EAN

4028177919181

ETIM 9

EC000261

ETIM 8

EC000261

ECLASS 8.0

27180101

Product description

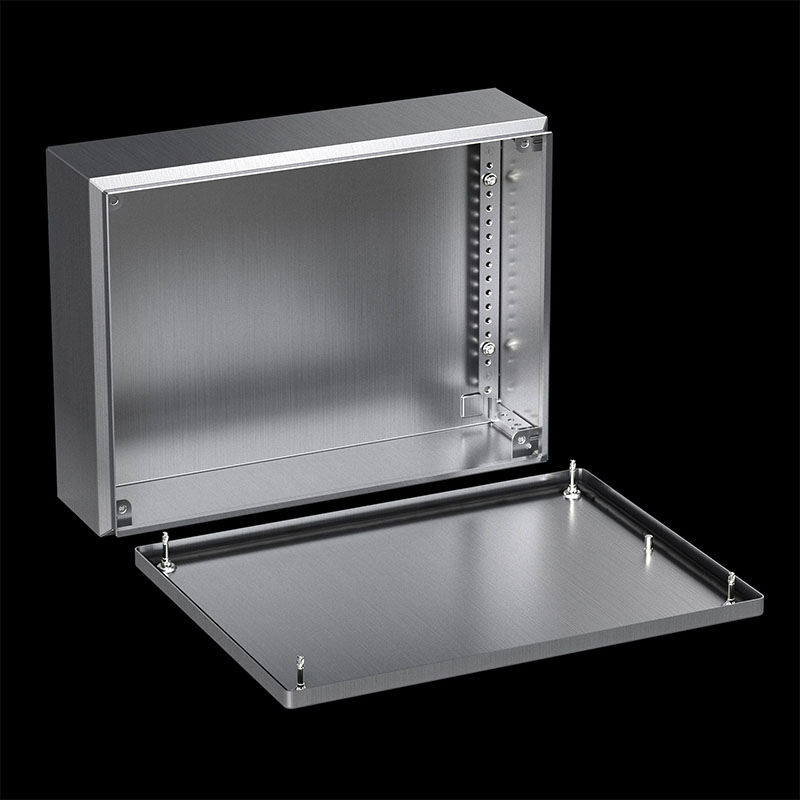

KX Terminal box, WHD: 300x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners
