Article no.:

SK 3185730

Version

roof-mounted

Benefits

An average of 75% energy savings due to speed-regulated components and heat pipe technology

Suitable for international use due to a unique multi-voltage capability

Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling

Intuitive operation due to touch display and intelligent interfaces

Material

Carbon steel

Color

RAL 7035

Supply includes

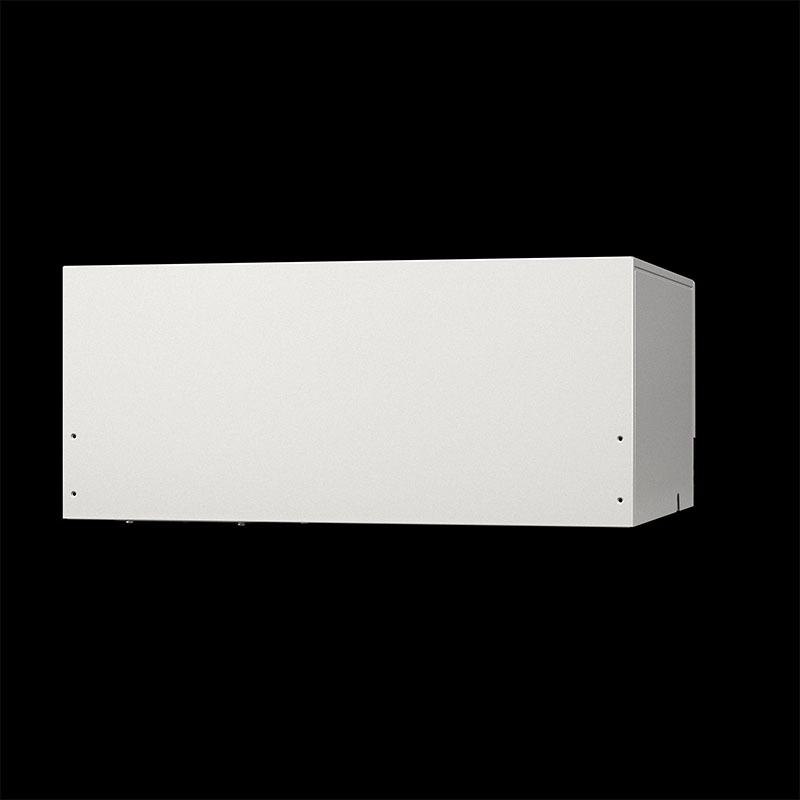

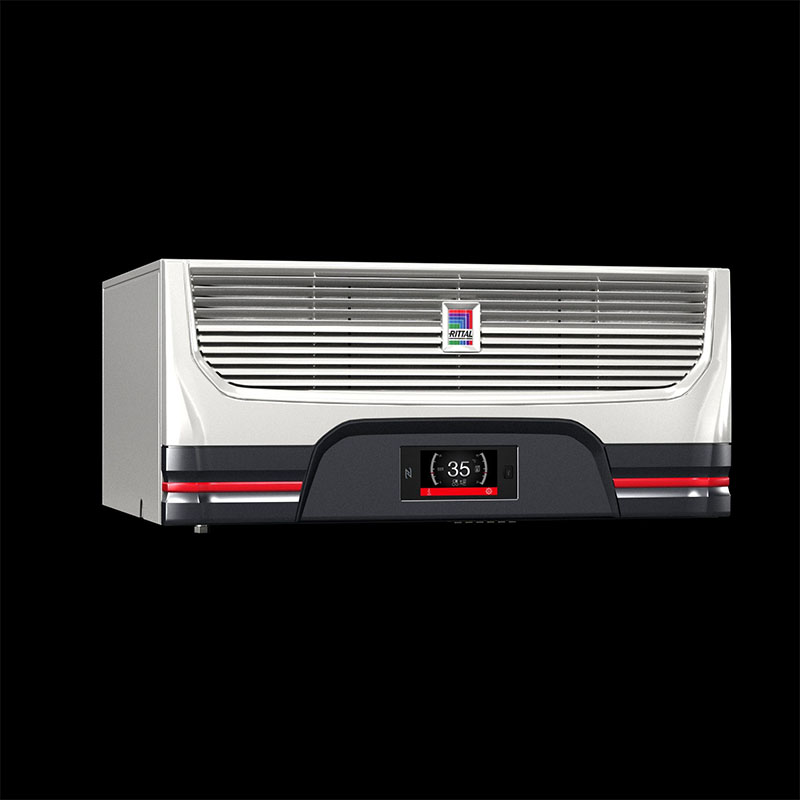

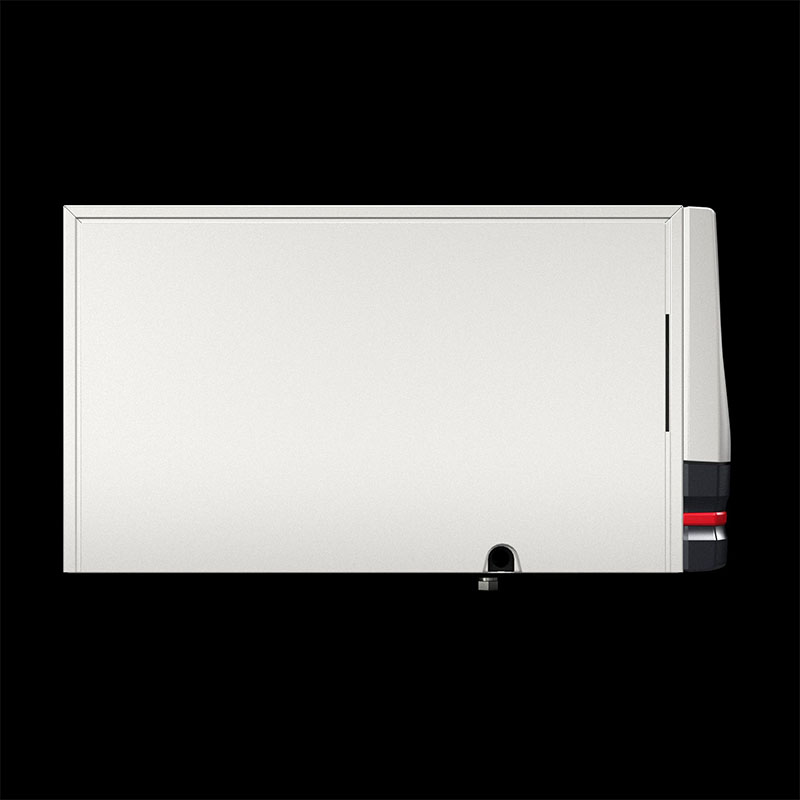

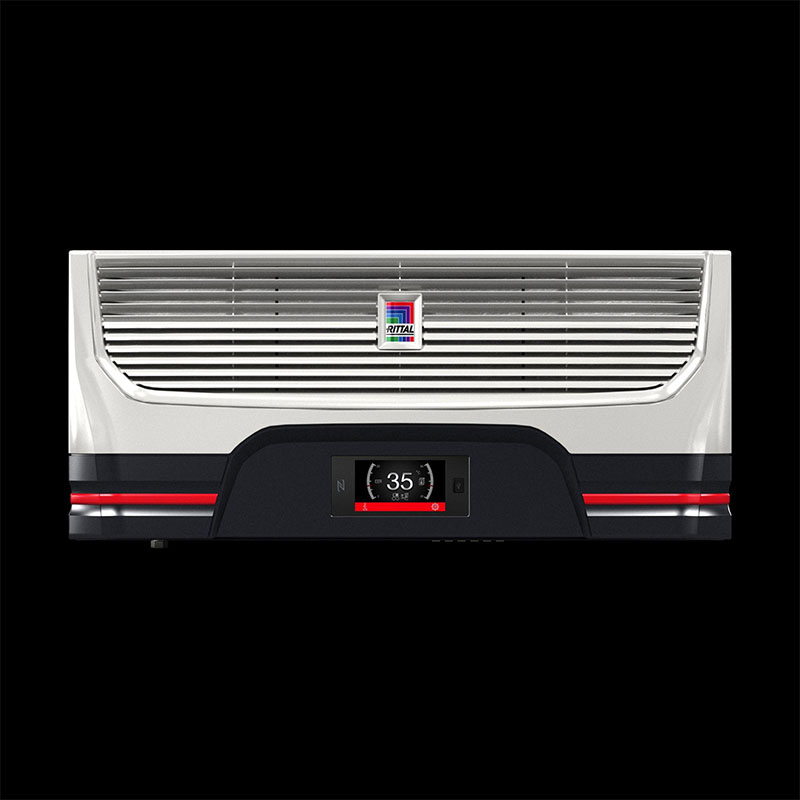

Roof-mounted Blue e+ cooling unit

Pleated filter

Wired ready for connection

Assembly components

Condensate hose (3 m)

Options

For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300. Increase machine availability and process safety by remote monitoring of device data, condition, and system messages.

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 1.3 kW

Cooling output L35 L35/60 Hz: 1.3 kW

Cooling output L35 L50/50 Hz: 0.6 kW

Cooling output L35 L50/60 Hz: 0.6 kW

( Cooling output L35 L35/50 Hz: 4,436 BTU/h

Cooling output L35 L35/60 Hz: 4,436 BTU/h

Cooling output L35 L50/50 Hz: 2,047 BTU/h

Cooling output L35 L50/60 Hz: 2,047 BTU/h )

Rated operating voltage

110 V - 240 V, 1~, 50 Hz/60 Hz

380 V - 480 V, 3~, 50 Hz/60 Hz

Note

Can be mounted on enclosures with 800 x 600 mm (W x D) minimum dimensions

Operation without a pleated filter is not permitted.

When the software is downloaded, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these license conditions.

Note on Model No.:

null

Rated output

0.75 kW

Air throughput (unimpeded air flow)

External circuit: 750 m³/h

Internal circuit: 700 m³/h

( External circuit: 441.4 cfm

Internal circuit: 412 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.04

Refrigeration factor L35 L35 (EER) 60 Hz: 2.04

Seasonal energy efficiency ratio (SEER) 50/60 Hz

5.3

Version

roof-mounted

Dimensions

Width: 700 mm

Height: 308 mm

Depth: 560 mm

( Width: 27.6 ˝

Height: 12.1 ˝

Depth: 22 ˝ )

Protection category IP to EN 60 529

External circuit IP 54 with pleated filter

Internal circuit IP 54 with pleated filter

Refrigerant/cooling medium

Refrigerant: R-513A

Quantity: 0.6 kg

Global Warming Potential (GWP): 631

CO₂ equivalent (CO₂e): 0.38 t

( Refrigerant: R-513A

Quantity: 1.3 lb. )

Type of connection (electrical)

Plug-in terminal strip

Temperature control

e+ controller (factory setting +35 °C)

Operating temperature range

-20 °C...55 °C

( -4 °F...131 °F )

Storage temperature range

-40 °C...70 °C

( -40 °F...158 °F )

Operating temperature range of refrigerant circuit (active)

3 °C...55 °C

Operating temperature range of heat pipe

-20 °C...45 °C

Setting range

20 °C...50 °C

( 68 °F...122 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 0.67 kW

Rated power L35 L35/60 Hz: 0.67 kW

Rated power L35 L50/50 Hz: 0.57 kW

Rated power L35 L50/60 Hz: 0.57 kW

Permissible operating pressure (p. max.)

24 bar

( 348.1 PSI )

Packaging unit

1 pc(s).

Net weight

49 kg

Gross weight

56.25 kg

PCF/VE (cradle-to-gate)

625.52

Customs tariff number

84158200

EAN

4028177927155

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

SK roof-mounted cooling unit Blue e+, carbon steel, cooling module, 4436 BTU/h 110-240 V, 1~, 50/60 Hz, 380-480 V, 3~, 50/60 Hz, WHD: 700 x 308 x 560 mm
