Article no.:

SK 3189940

Version

wall-mounted

Benefits

An average of 75% energy savings due to speed-regulated components and heat pipe technology

Suitable for international use due to a unique multi-voltage capability

Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling

Intuitive operation due to touch display and intelligent interfaces

Product changes

The cover for the connection box for protection for the electrical connection on the cooling unit has not been included in the delivery scope since the start of 2024. Cover 3355.200 and cover 3355.210 can be ordered as an optional accessory.

Material

Carbon steel

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating

Integral electric condensate evaporation

Assembly components

Wired ready for connection (plug-in terminal strip)

Options

For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300. Increase machine availability and process safety by remote monitoring of device data, condition, and system messages.

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 5.5 kW

Cooling output L35 L35/60 Hz: 5.5 kW

Cooling output L35 L50/50 Hz: 3.95 kW

Cooling output L35 L50/60 Hz: 3.95 kW

( Cooling output L35 L35/50 Hz: 18,767 BTU/h

Cooling output L35 L35/60 Hz: 18,767 BTU/h

Cooling output L35 L50/50 Hz: 13,478 BTU/h

Cooling output L35 L50/60 Hz: 13,478 BTU/h )

Rated operating voltage

380 V - 480 V, 3~, 50 Hz/60 Hz

Note

Please observe the assembly instructions.

When the software is downloaded, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these license conditions.

Only for semi-outdoor use (see instructions for description)

Note on Model No.:

Tolerance: 380 V -10% (342 V) and 480 V +5% (509 V)

Full internal mounting not possible

Note on Model No.:

null

Rated output

2.35 kW

Air throughput (unimpeded air flow)

External circuit: 2,300 m³/h

Internal circuit: 2,300 m³/h

( External circuit: 1,353.7 cfm

Internal circuit: 1,353.7 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.5

Refrigeration factor L35 L35 (EER) 60 Hz: 2.5

Seasonal energy efficiency ratio (SEER) 50/60 Hz

5.6

Version

wall-mounted

Dimensions

Width: 450 mm

Height: 1,600 mm

Depth: 393 mm

( Width: 17.7 ˝

Height: 63 ˝

Depth: 15.5 ˝ )

Required mounting cut-out

Width of opening: 433 mm

Cut-out height: 1,579 mm

( Width of opening: 17 ˝

Cut-out height: 62.2 ˝ )

Protection category IP to EN 60 529

Internal circuit IP 55

Protection category NEMA

UL Type 12

UL Type 3R

Refrigerant/cooling medium

Refrigerant: R-513A

Quantity: 1.8 kg

Global Warming Potential (GWP): 631

CO₂ equivalent (CO₂e): 1.14 t

( Refrigerant: R-513A

Quantity: 4 lb. )

Temperature control

e+ controller (factory setting +35 °C)

Operating temperature range

-20 °C...60 °C

( -4 °F...140 °F )

Storage temperature range

-40 °C...70 °C

( -40 °F...158 °F )

Operating temperature range of refrigerant circuit (active)

3 °C...60 °C

Operating temperature range of heat pipe

-20 °C...45 °C

Setting range

20 °C...50 °C

( 68 °F...122 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 2.2 kW

Rated power L35 L35/60 Hz: 2.2 kW

Rated power L35 L50/50 Hz: 2.2 kW

Rated power L35 L50/60 Hz: 2.2 kW

Permissible operating pressure (p. max.)

24 bar

( 348.1 PSI )

Packaging unit

1 pc(s).

Net weight

72.4 kg

Gross weight

89 kg

PCF/VE (cradle-to-gate)

1,168.6

Customs tariff number

84158200

EAN

4028177708075

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

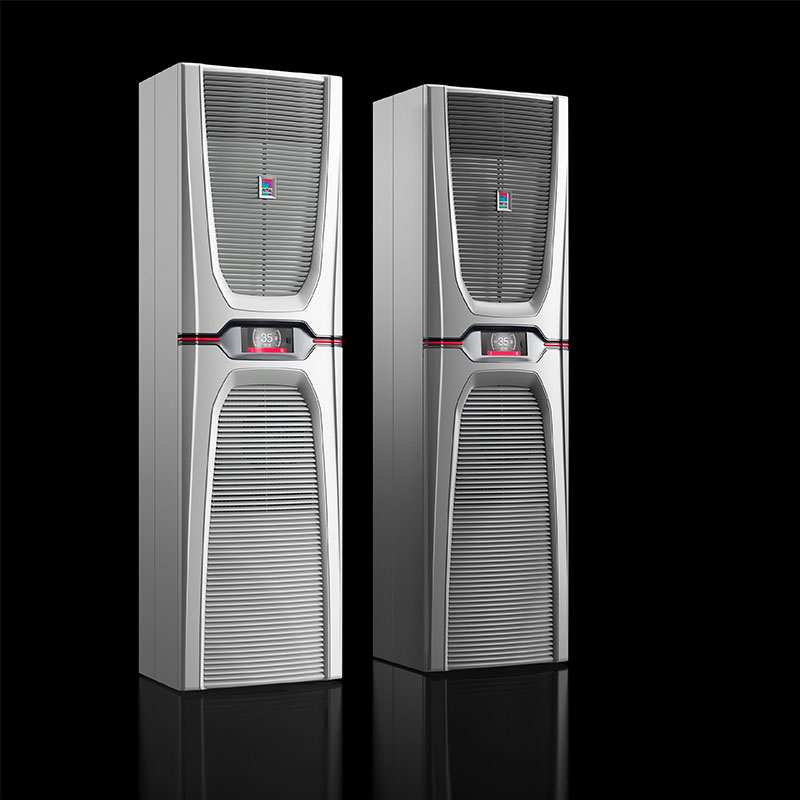

SK cooling unit Blue e+, wall-mounted, 18766.78 BTU/h 380-480 V, 3~, 50-60 Hz, carbon steel, 63" H x 17.7" W x 15.5" D
