Article no.:

SK 3187330

Version

wall-mounted

Outdoor

Product description

The energy-efficient wall-mounted air conditioner Blue e + Outdoor can be used worldwide due to multi-voltage capability, and is suitable for use with Toptec project solutions, for example.

Benefits

An average of 75% energy savings due to speed-regulated components and heat pipe technology

Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling

Intuitive operation due to touch display and intelligent interfaces

Product changes

The cover for the connection box for protection for the electrical connection on the cooling unit has not been included in the delivery scope since the start of 2024. Cover 3355.200 and cover 3355.210 can be ordered as an optional accessory.

Material

Aluminum AlMg3

Surface finish

Powder-coated

UV-resistant pure polyester

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating

Integral electric condensate evaporation

Wired ready for connection (plug-in terminal strip)

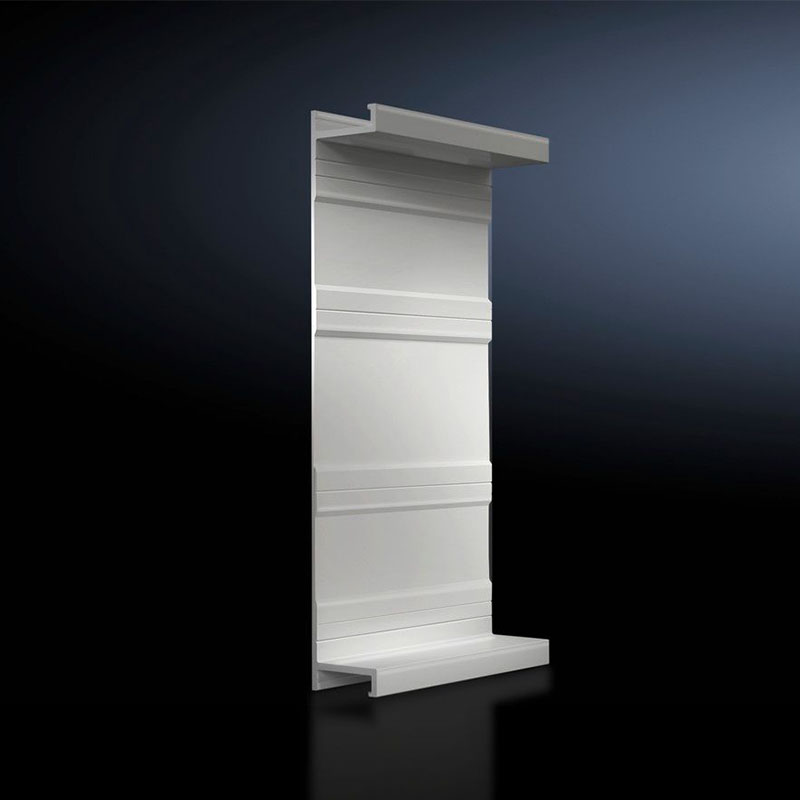

Mounting frame for universal attachment to outdoor enclosures for surface mounting, partially internal installation and fully internal installation

Assembly components

Options

For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300. Increase machine availability and process safety by remote monitoring of device data, condition, and system messages.

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 2.5 kW

Cooling output L35 L35/60 Hz: 2.5 kW

Cooling output L35 L50/50 Hz: 1.6 kW

Cooling output L35 L50/60 Hz: 1.6 kW

( Cooling output L35 L35/50 Hz: 8,530 BTU/h

Cooling output L35 L35/60 Hz: 8,530 BTU/h

Cooling output L35 L50/50 Hz: 5,459 BTU/h

Cooling output L35 L50/60 Hz: 5,459 BTU/h )

Rated operating voltage

110 V - 240 V, 1~, 50 Hz/60 Hz

380 V - 480 V, 3~, 50 Hz/60 Hz

Note

When the software is downloaded, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these license conditions.

Note on Model No.:

Tolerance: 110 V -10% (99 V) and 240 V +10% (264 V) / 380 V -10% (342 V) and 480 V +6% (509 V)

Rated output

1.05 kW

Rated power Pel

Rated power L35 L35/50 Hz: 1.08 kW

Rated power L35 L35/60 Hz: 1.08 kW

Rated power L35 L50/50 Hz: 1.03 kW

Rated power L35 L50/60 Hz: 1.03 kW

Temperature control

e+ controller (factory setting +35 °C)

Dimensions

Width: 465 mm

Height: 1,640 mm

Depth: 260 mm

( Width: 18.3 ˝

Height: 64.6 ˝

Depth: 10.2 ˝ )

Enclosure dimensions including sealing frame and designer cover

Width: 517 mm

Height: 1,692 mm

Depth: 260 mm

Installation type

Universal installation (surface-mounting, partial internal installation and full internal installation)

Protection category IP to IEC 60 529

with mounting frame: Internal circuit IP56

without mounting frame: Internal circuit IP54

Protection category NEMA

with mounting frame: UL Type 12/3R/4

without mounting frame: UL Type 12/3R

Air throughput (unimpeded air flow)

External circuit: 1,250 m³/h

Internal circuit: 1,250 m³/h

( External circuit: 735.7 cfm

Internal circuit: 735.7 cfm )

Refrigerant/cooling medium

Refrigerant: R-513A

Quantity: 1.07 kg

Global Warming Potential (GWP): 631

CO₂ equivalent (CO₂e): 0.68 t

( Refrigerant: R-513A

Quantity: 2.4 lb. )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.31

Refrigeration factor L35 L35 (EER) 60 Hz: 2.31

Suitable for

Enclosure type: Toptec

Width: ≥ 800 mm

Height: ≥ 1,800 mm

( Enclosure type: Toptec

Width: ≥ 31.5 ˝

Height: ≥ 70.9 ˝ )

Suitable for Model No.

9782.828

9783.888

Setting range

20 °C...50 °C

( 68 °F...122 °F )

Operating temperature range

-30 °C...60 °C

( -22 °F...140 °F )

Operating temperature range of refrigerant circuit (active)

3 °C...60 °C

Operating temperature range of heat pipe

-30 °C...45 °C

Storage temperature range

-40 °C...70 °C

( -40 °F...158 °F )

Permissible operating pressure (p. max.)

2.4

Noise pressure level

70 dB(A)

Packaging unit

1 pc(s).

Net weight

63 kg

Gross weight

73 kg

PCF/VE (cradle-to-gate)

1,015.14

Customs tariff number

84158200

EAN

4028177967311

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

SK Cooling unit Blue e+, wall-mounted, Outdoor, 8530 BTU/h 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, aluminum, WHD: 465 x 1640 x 260 mm
