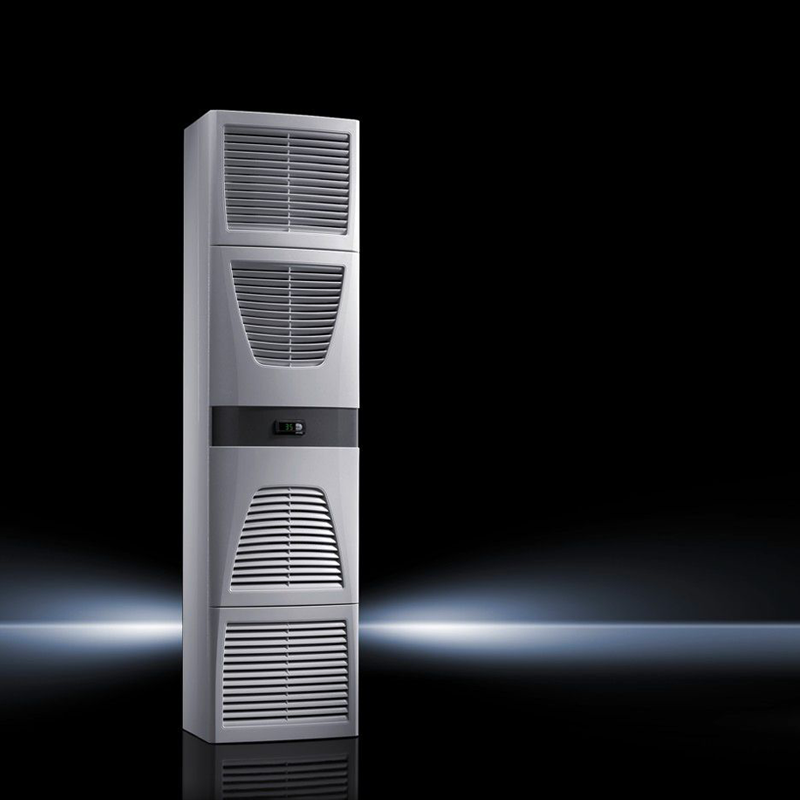

Article no.:

SK 3332540

Version

wall-mounted

Product description

Energy efficient Blue e wall-mounted cooling units in performance classes 300 W to 4000 W and with integrated electrical condensation evaporation for 1000 W and above.

Benefits

May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers

Product changes

This cooling unit is available with the refrigerant R134a until December 31, 2026. From 1 January 2025, the unit will no longer meet the GWP requirements for the US market. As an alternative, we recommend the use of a Blue e+ cooling unit.

Material

Carbon steel

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating
Wired ready for connection (plug-in terminal strip)
Drilling template
Fasteners
Integral electric condensate evaporation

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 3.95 kW
Cooling output L35 L35/60 Hz: 4.35 kW
Cooling output L35 L50/50 Hz: 3.02 kW
Cooling output L35 L50/60 Hz: 3.52 kW
( Cooling output L35 L35/50 Hz: 13,478 BTU/h
Cooling output L35 L35/60 Hz: 14,843 BTU/h
Cooling output L35 L50/50 Hz: 10,305 BTU/h
Cooling output L35 L50/60 Hz: 12,011 BTU/h )

Rated operating voltage

400 V, 3~, 50 Hz

460 V, 3~, 60 Hz

Rated current max.

At 50 Hz: 4.2 A
At 60 Hz: 4.2 A

Start-up current (max.)

At 50 Hz: 9.2 A
At 60 Hz: 11 A

Air throughput (unimpeded air flow)

External circuit: 2,000 m³/h
Internal circuit: 1,500 m³/h
( External circuit: 1,177.2 cfm
Internal circuit: 882.9 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.47
Refrigeration factor L35 L35 (EER) 60 Hz: 2.18

Version

wall-mounted

Dimensions

Width: 500 mm
Height: 1,580 mm
Depth: 340 mm
( Width: 19.7 ˝
Height: 62.2 ˝
Depth: 13.4 ˝ )

Protection category IP to EN 60 529

External circuit, IP 34

Internal circuit, IP 54

Protection category NEMA

UL Type 12

Refrigerant/cooling medium

Refrigerant: R134a
Quantity: 2.995 kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 4.28 t
( Refrigerant: R134a
Quantity: 6.6 lb. )

Temperature control

e-Comfort Controller (factory setting +35 °C)

Operating temperature range

10 °C...55 °C
( 50 °F...131 °F )

Storage temperature range

-40 °C...70 °C
( -40 °F...158 °F )

Setting range

20 °C...55 °C
( 68 °F...131 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 1.6 kW
Rated power L35 L35/60 Hz: 2 kW
Rated power L35 L50/50 Hz: 1.87 kW
Rated power L35 L50/60 Hz: 2.34 kW

Permissible operating pressure (p. max.)

28 bar
( 406.1 PSI )

Pre-fuse

Motor circuit-breaker: 6.3...10 A

Note on Model No.:

Full internal mounting not possible

Packaging unit

1 pc(s).

Net weight

94.5 kg

Gross weight

104 kg

Customs tariff number

84158200

EAN

4028177317598

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

SK cooling unit Blue e, wall-mounted, 13478 BTU/h, 400-460 V, 3~, 50/60 Hz, carbon steel, WHD: 500 x 1580 x 340 mm
