Article no.:

SK 3384500

Version

roof-mounted

Product description

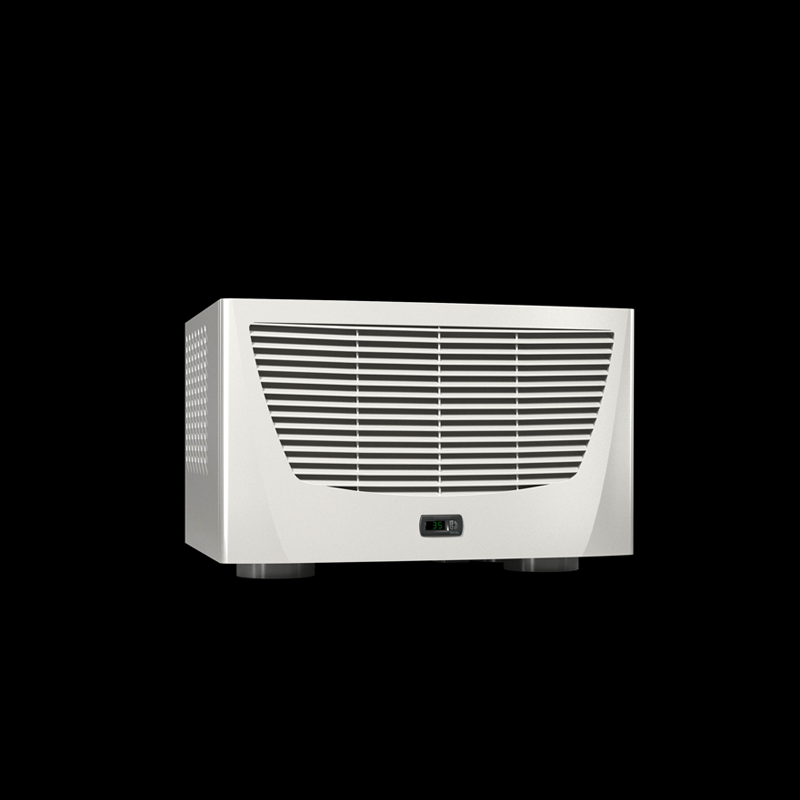

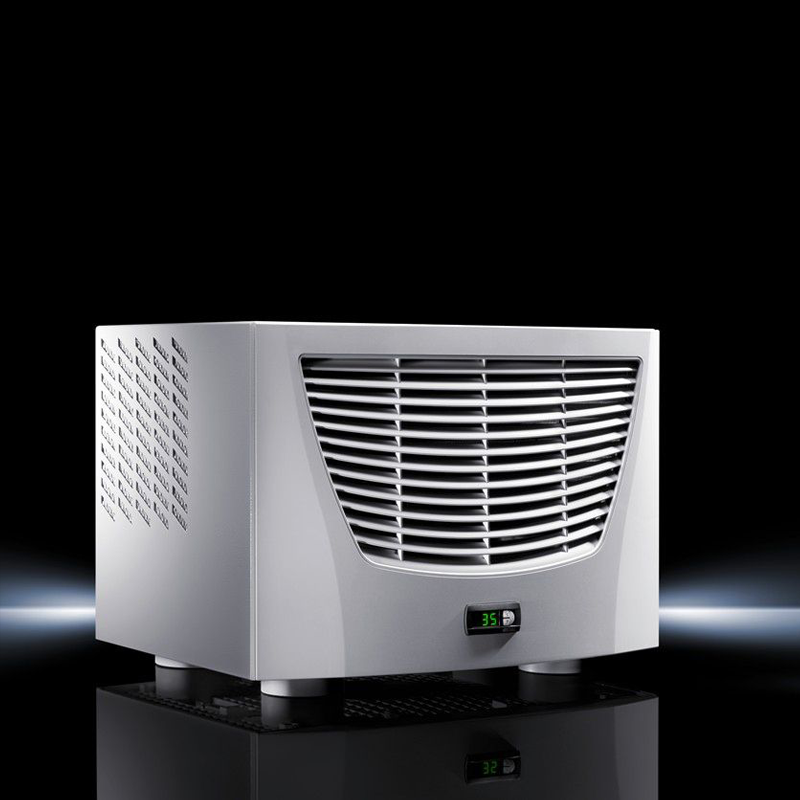

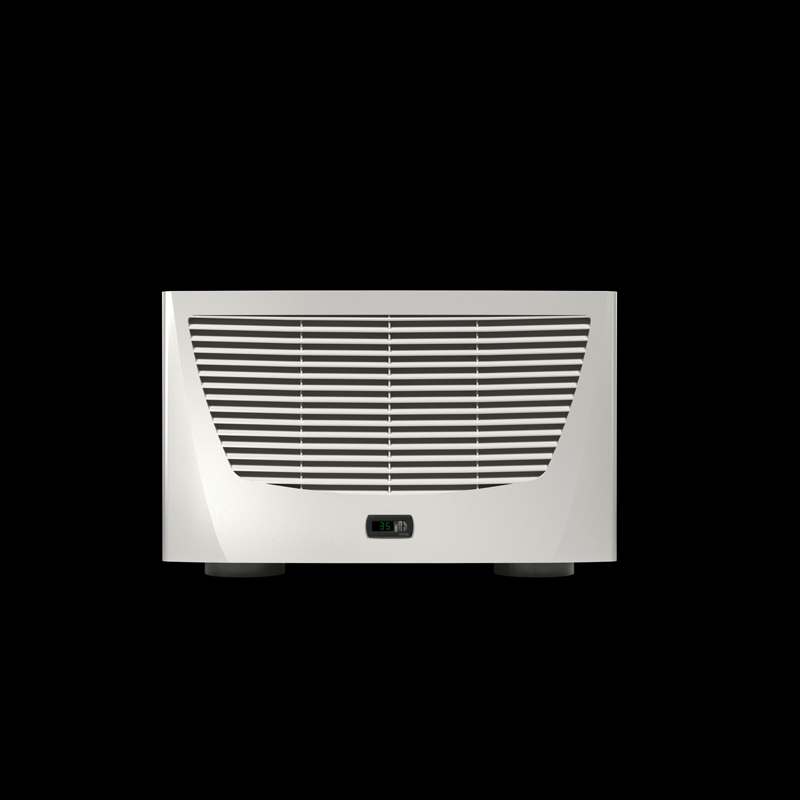

Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.

Benefits

May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers

Material

Carbon steel

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating
Integral electric condensate evaporation
Wired ready for connection (plug-in terminal strip)
Drilling template
Fasteners

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 1.6 kW
Cooling output L35 L35/60 Hz: 1.75 kW
Cooling output L35 L50/50 Hz: 1.15 kW
Cooling output L35 L50/60 Hz: 1.21 kW
( Cooling output L35 L35/50 Hz: 5,459 BTU/h
Cooling output L35 L35/60 Hz: 5,971 BTU/h
Cooling output L35 L50/50 Hz: 3,924 BTU/h
Cooling output L35 L50/60 Hz: 4,129 BTU/h )

Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

Note

Due to its low noise level, the roof-mounted cooling unit 3273.500 is also suitable for use in office applications.

Rated current max.

At 50 Hz: 5.5 A
At 60 Hz: 6.4 A

Start-up current (max.)

At 50 Hz: 14.7 A
At 60 Hz: 13.6 A

Air throughput (unimpeded air flow)

External circuit: 1,600 m³/h
Internal circuit: 491 m³/h
( External circuit: 941.7 cfm
Internal circuit: 289 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.3
Refrigeration factor L35 L35 (EER) 60 Hz: 1.92

Version

roof-mounted

Dimensions

Width: 597 mm
Height: 417 mm
Depth: 475 mm
( Width: 23.5 ˝
Height: 16.4 ˝
Depth: 18.7 ˝ )

Protection category IP to EN 60 529

External circuit, IP 34

Internal circuit, IP 54

Refrigerant/cooling medium

Refrigerant: R-513A
Quantity: 0.88 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.56 t
( Refrigerant: R-513A
Quantity: 1.9 lb. )

Type of connection (electrical)

Plug-in terminal strip

Duty cycle

100 %

Temperature control

e-Comfort Controller (factory setting +35 °C)

Operating temperature range

10 °C...55 °C
( 50 °F...131 °F )

Operating temperature max @60 Hz

53 °C
( 127 °F )

Storage temperature range

-40 °C...70 °C
( -40 °F...158 °F )

Setting range

20 °C...53 °C
( 68 °F...127 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 0.7 kW
Rated power L35 L35/60 Hz: 0.91 kW
Rated power L35 L50/50 Hz: 0.79 kW
Rated power L35 L50/60 Hz: 1 kW

Permissible operating pressure (p. max.)

28 bar
( 406.1 PSI )

Pre-fuse

Miniature circuit-breaker/fuse: 10 A

Packaging unit

1 pc(s).

Net weight

42.5 kg

Gross weight

51 kg

Customs tariff number

84158200

EAN

4028177322875

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

SK cooling unit Blue e, roof-mounted, 5459 BTU/h, 230 V, 1~, 50/60 Hz, carbon steel, 16.4" H x 23.5" W x 18.7" D
