SK 3237300 Blue e+ outlet filter
The outlet filter is used in conjunction with the associated filter fan to dissipate lost heat out of the enclosures, to ventilate the enclosure and to protect temperature-sensitive components. This is done via the direct supply of ambient air that must be below the permissible temperature inside the enclosure.
Product description
SK Blue e+ outlet filter, for filter fan 3237.7xx, WH: 116.5 x 116.5 mm, RAL 7035
Article no.:
SK 3237300
Version
wall-mounted
Benefits

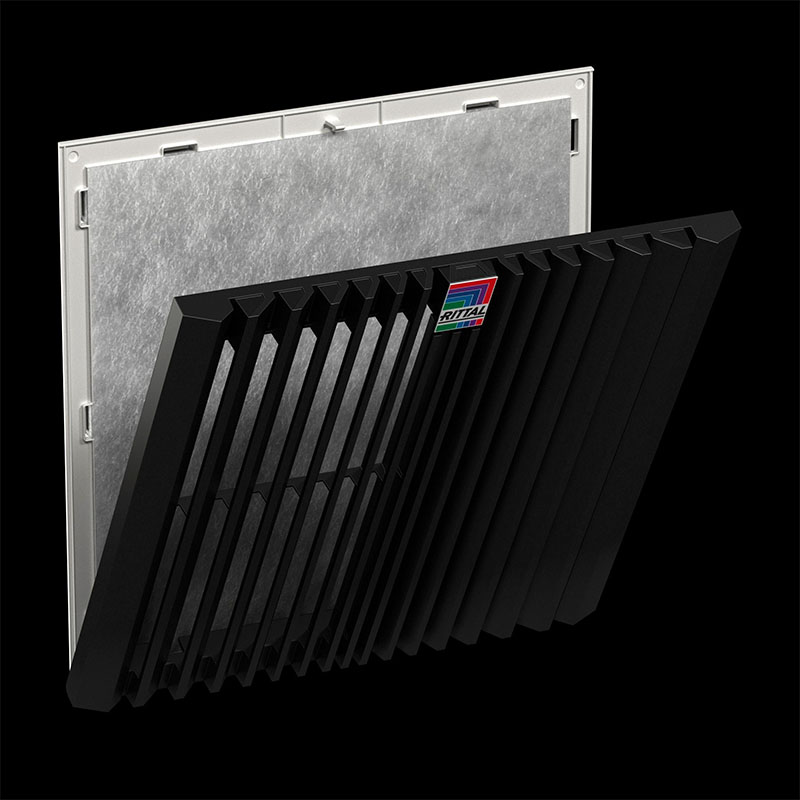

Easy filter change thanks to a new opening mechanism on the louvre grille
Faster assembly on the enclosure due to optimized snap hooks
Tool-free mounting
Material
Plastic
Color
RAL 7035
Supply includes
Outlet Filters
Chopped fiber filter mat
Mounting cut-out
Width of opening: 92 mm
Cut-out height: 92 mm
( Width of opening: 3.62 ˝
Cut-out height: 3.62 ˝ )
Suitable for Model No.
SK 3237.7xx
Dimensions
Width: 116.5 mm
Height: 116.5 mm
Depth: 33.2 mm
( Width: 4.59 ˝
Height: 4.59 ˝
Depth: 1.31 ˝ )
Protection category NEMA
Type 12 with fleece filter
Type 3, 3R with fleece filter and hose-proof hood
Protection category IP to IEC 60 529
IP 54 with fleece filter
IP 56 with fleece filter and hose-proof hood
Packaging unit
1 pc(s).
Net weight
0.12 kg
Gross weight
0.155 kg
Customs tariff number
39269097
EAN
4028177998438
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Blue e+ outlet filter, for filter fan 3237.7xx, WH: 116.5 x 116.5 mm, RAL 7035
