SK 3237700 Blue e+ filter fan

Complete fan unit for tool-free mounting on surfaces. Air throughput from 11 - 682.75 cfm, protection category IP 54 as standard.

Product description

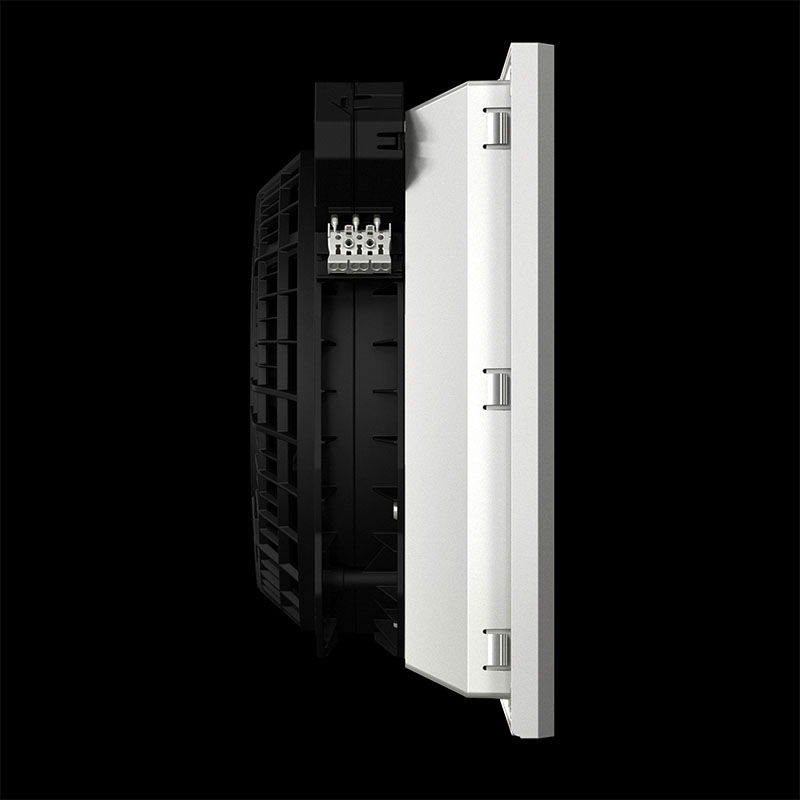

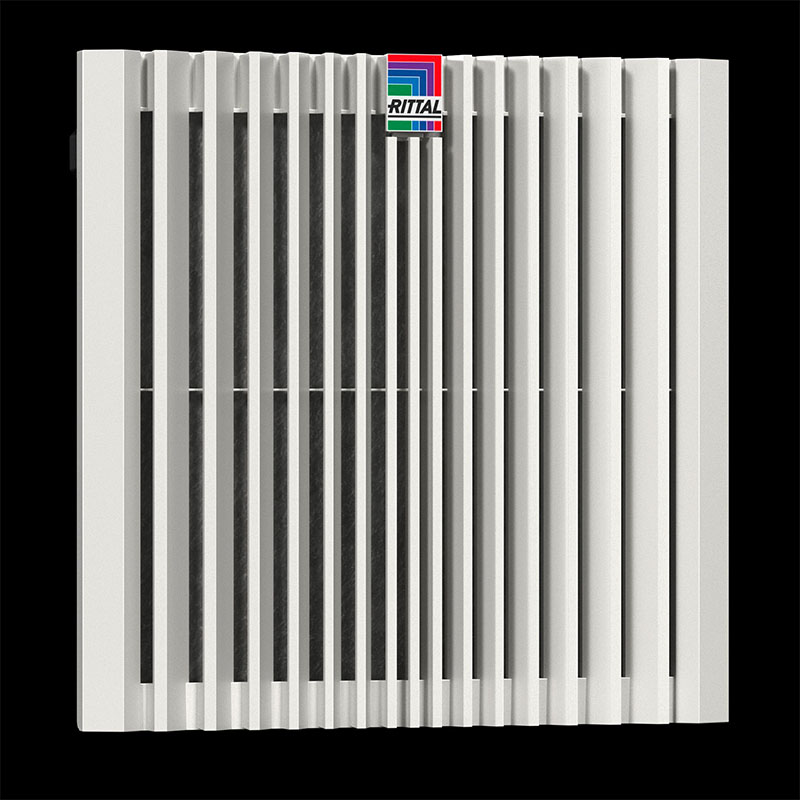

SK Blue e+ filter fan, 20/25 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 116.5 x 116.5 x 64.5 mm, RAL 7035

Send Inquiry

Product Introduction

Article no.:

SK 3237700

Version

wall-mounted

Product description

Filter fans with diagonal fan technology are more pressure-resistant and produce more constant air performance. The diagonal outflow direction ensures a more uniform heat dissipation from the enclosure.

Benefits

Easy filter change thanks to a new opening mechanism on the louvre grille

Faster assembly on the enclosure due to optimized snap hooks

Diagonal fan technology ensures more uniform and consistent ventilation of the control cabinet through higher pressure stability.

Tool-free mounting

Material

Plastic

Color

RAL 7035

Supply includes

Complete unit ready to install, including chopped fiber filter mat

Fan

Axial, shaded pole motor

Unimpeded air flow (with chopped fiber filter)

At 50 Hz: 20 m³/h

At 60 Hz: 25 m³/h

( At 50 Hz: 11.8 cfm

At 60 Hz: 14.7 cfm )

Airflow with corresponding outlet filter including chopped fiber filter

At 50 Hz: 15 m³/h

At 60 Hz: 18 m³/h

( At 50 Hz: 8.83 cfm

At 60 Hz: 10.59 cfm )

Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

Rated power Pel

At 50 Hz: 13 W

At 60 Hz: 11.1 W

Rated current max.

At 50 Hz: 0.1 A

At 60 Hz: 0.09 A

Dimensions

Width: 116.5 mm

Height: 116.5 mm

Depth: 64.5 mm

( Width: 4.59 ˝

Height: 4.59 ˝

Depth: 2.54 ˝ )

Installation depth

46 mm

( 1.81 ˝ )

Mounting cut-out

Width of opening: 92 mm

Cut-out height: 92 mm

( Width of opening: 3.62 ˝

Cut-out height: 3.62 ˝ )

Protection category IP to IEC 60 529

IP 54 with fleece filter

IP 56 with fleece filter and hose-proof hood

Protection category NEMA

Type 12 with fleece filter

Type 3, 3R with fleece filter and hose-proof hood

Pre-fuse

Miniature circuit-breaker/fuse: 2 A

Note

For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, it’s made via a spring-loaded terminal

Operating temperature range

-15 °C...55 °C

( 5 °F...131 °F )

Storage temperature range

-30 °C...70 °C

( -22 °F...158 °F )

Noise pressure level

At 50 Hz: 42 dB(A)

At 60 Hz: 47 dB(A)

Packaging unit

1 pc(s).
