Article no.:

CP 6212060

Product description

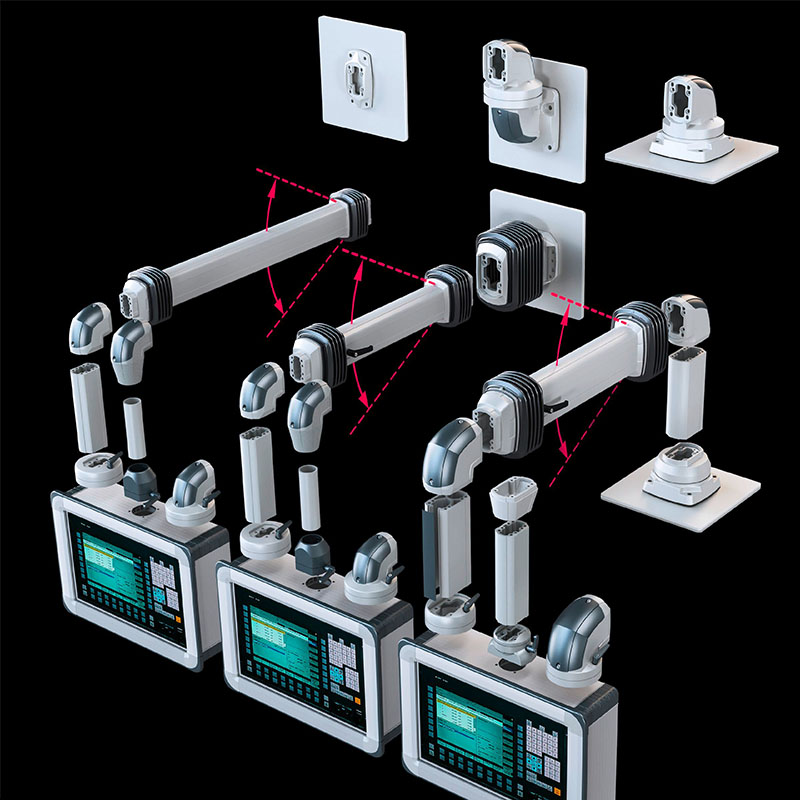

The new height-adjustable support profile, always provides the right view of the key parameters in human/machine interaction. On the wall side, the system can be fitted directly to the components of the CP 120 support arm system without any further adaptation, and on the enclosure side, either to support arm system CP 60 or CP 120, depending on the model.

Benefits

Support arm holds in every position

Additional fixing via clamping levers possible

Precise adjustment to the trailing load through an adjusting screw on the front of the support profile

Adjusting screw can be accessed without dismantling any components

Safety through large cable troughs and cable guides at the swing points

Removable side panel for easy access to the cable routing

Tilting angle of the mounted housing is identical in every height position

Cables with connectors such as DVI and VGA are also easily inserted

Broad weight range from 4 to 60 kg with three systems. (Weight range applies to configured enclosure and vertical support section)

Technical specifications

Cable trough: 36 x 11 mm (W x H), max. connector gland: 41 x 17 mm (W x H)

Offers enhanced ergonomics through 600 mm (± 300 mm) adjustment range

Applications

For tall and short operators

For sitting or standing workstations

Material

Hinge: Cast aluminum

Concertina section: Plastic

Color

RAL 7035

Supply includes

Assembly components

Length

741 mm

( 29.2 ˝ )

Connection options enclosure

CP 60

Connection options wall / machine

CP 120

Note

In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure.

Dimensions

Length: 741 mm

( Length: 29.2 ˝ )

Load

4 kg...30 kg

( 8.8 lb....66.1 lb. )

Note on Model No.:

Maximum cross-section for cable entry 41 x 17 mm

Weight range applies to configured housing and vertical support section.

Packaging unit

1 pc(s).

Net weight

10.8 kg

Gross weight

11.8 kg

Customs tariff number

73269060

EAN

4028177924338

ETIM 9

EC000882

ECLASS 8.0

27400556

Product description

CP support section height-adjustable, CP 120/60, for weight range 4-30 kg
