Article no.:

CP 6320400

Material

Housing and door: Carbon steel

Handle strips: Aluminum

Front panel: Aluminum

Cover caps: Plastic

Surface finish

Housing and door: Dipcoat primed, powder-coated on the outside, textured paint

Handle strip: Natural anodized

Front panel: Natural anodized.

Color

Housing and door: RAL 7035

Handle strip: Natural anodized

Front panel: Natural anodized.

Cover caps: Similar to RAL 7024

Supply includes

Housing with cut-out and reinforcement for support arm connection Ø 130 mm

Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel

Side handle strips and cover caps

Cam lock with 3 mm double-bit insert

Integral interior mounting bracket with TS system punchings

Dimensions

Width: 500 mm

Height: 500 mm

Depth: 210 mm

( Width: 19.7 ˝

Height: 19.7 ˝

Depth: 8.27 ˝ )

Protection category IP to IEC 60 529

IP 55

Version

Service access from rear

Note

The support arm connection and door catch may be swapped over by rotating the enclosure

Optional: Support arm connection Ø 130 mm, preformed off-center in the reinforcement plate, easily drilled out

Lock systems for servicing access from the rear: 27 mm lock inserts, type A, lock cylinder, plastic handles and T-handles, type B

Base material

Aluminum

Lock

Lock version: Cam

No. of locks: 2

Lock Insert: 3 mm double-bit

Packaging unit

1 pc(s).

Net weight

13.537 kg

Gross weight

14.249 kg

Customs tariff number

94032080

EAN

4028177693999

ECLASS 8.0

27180505

Product description

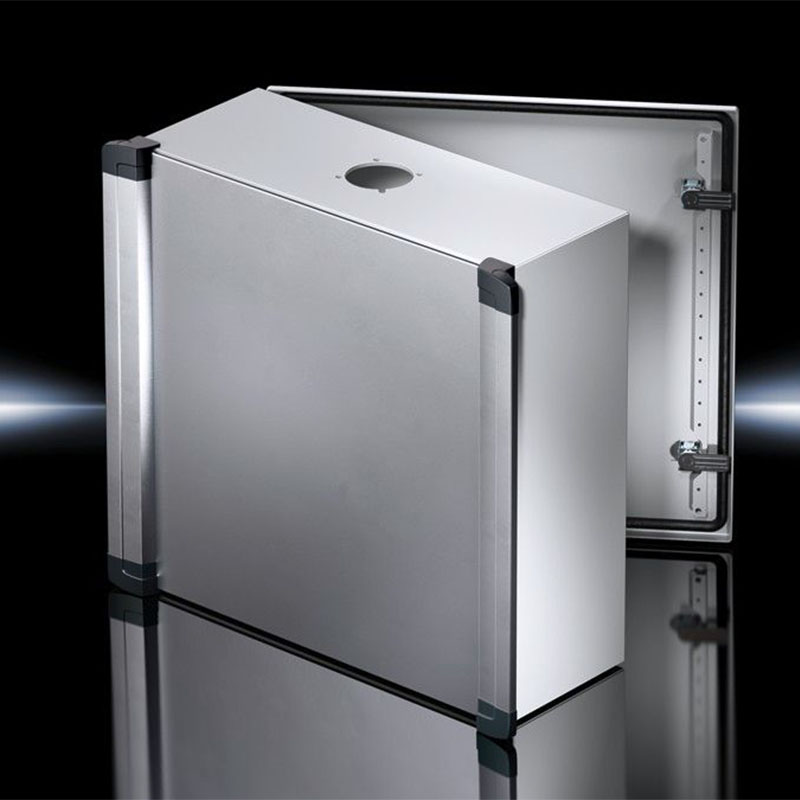

CP Operating housing with handle strips, WHD: 500x500x210 mm, Sheet steel, handle strips made of aluminum, Servicing access from the rear
